FJK2-B Series is FUJI Global Korea’s standard outer rotor type PM gearless traction machine. It is very cost-effective, and is a classic model with largest sale & ownership volume.
Have any questions? Feel free to contact us:
ENGLISH
PM Traction Machine (Standard series) FJK2-B
FJK2-B
PM Traction Machine
(Standard series)
Traction Machine Parameter
Voltage: AC380V
Roping: 2: 1
Wrap: Single
Capacity: 450kg-1150kg
Speed: 0.5m/s – 2.0m/s
Protection Grade: IP41
Ins. Class: F
Traction machine pole: 30
Stars per hour: 240
Rating: S5-40%
Elevator Height: ≤90m
Features
- Short axial length, suitable for machine roomless elevator application;
- High efficiency with high torque density design;
- Small size, simple structure with high utilization of materials;
- Machine low speed operation smooth, with low noise and small vibration;
- Use block type armless brake with high reliability.
Brake Parameter
Model: BLB
Ins. Class: F
Voltage: DC110V
Current:

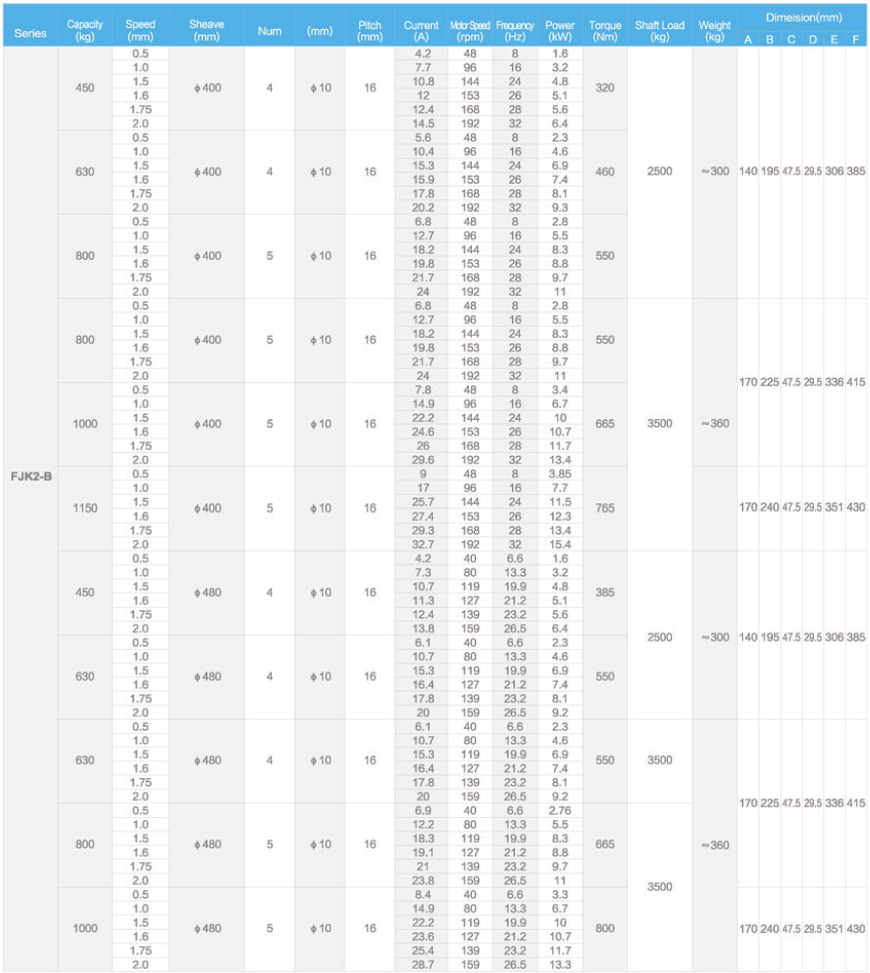

FJK2-B Outer Rotor Series
Elevator Height : <90m
Elevator Height : <120m
